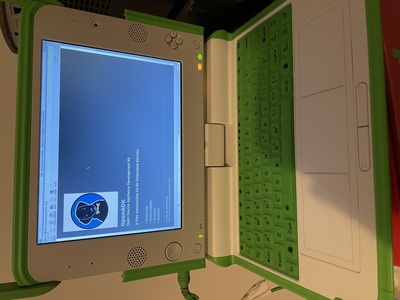

+title = "OLPC XO-1"
|
|
|
+date = "2026-02-08T09:30:45+01:00"
|
|
|
+type = "index"
|
|
|
+
|
|
|
++++
|
|
|
+
|
|
|
++ Architecture: X86
|
|
|
++ CPU: AMD Geode 133 Mhz
|
|
|
++ RAM: 32 MB
|
|
|
++ Flash: 1 GB
|
|
|
++ SD-Card reader
|
|
|
++ WLAN USB
|
|
|
++ 3x USB 2.0
|
|
|
++ Soundcard CS5535
|
|
|
++ Display
|
|
|
++ Keyboard
|
|
|
++ Bootloader: OpenFirmware
|
|
|
++ Power Supply 12V 1.42A
|
|
|
+
|
|
|
+Can be bootet via USB, SD-Card or internal Flash.
|
|
|
+
|
|
|
+Wikipedia: https://en.wikipedia.org/wiki/OLPC_XO
|
|
|
+
|
|
|
+
|
|
|
+
|
|
|
+Dmesg:
|
|
|
+```
|
|
|
+[ 0.000000] unchecked MSR access error: RDMSR from 0x8b at rIP: 0xc1b9ebef (microcode_loader_disabled+0x3b/0x5c)
|
|
|
+[ 0.000000] Call Trace:
|
|
|
+[ 0.000000] <IRQ>
|
|
|
+[ 0.000000] </IRQ>
|
|
|
+[ 0.000000] Linux version 6.18.8-1 (wbx@fluor) (i586-openadk-linux-uclibc-gcc (GCC) 15.2.0, GNU ld (GNU Binutils) 2.45.1) #1 Sun Feb 8 17:02:22 CET 2026
|
|
|
+[ 0.000000] OFW detected in memory, cif @ 0xff83b3b4 (reserving top 8MB)
|
|
|
+[ 0.000000] Reserving virtual address space above 0xff800000 (rounded to 0xff800000)
|
|
|
+[ 0.000000] x86 CPU feature dependency check failure: CPU0 has 'cmov' enabled but 'fxsr' disabled. Kernel might be fine, but no guarantees.
|
|
|
+[ 0.000000] BIOS-provided physical RAM map:
|
|
|
+[ 0.000000] BIOS-e801: [mem 0x0000000000000000-0x000000000009efff] usable
|
|
|
+[ 0.000000] BIOS-e801: [mem 0x0000000000100000-0x000000000ebfffff] usable
|
|
|
+[ 0.000000] Notice: NX (Execute Disable) protection missing in CPU!
|
|
|
+[ 0.000000] Legacy DMI 2.1 present.
|
|
|
+[ 0.000000] DMI: OLPC XO/XO, BIOS OLPC Ver 1.00.01 01/29/2016
|
|
|
+[ 0.000000] DMI: Memory slots populated: 1/1
|
|
|
+[ 0.000000] tsc: Fast TSC calibration using PIT
|
|
|
+[ 0.000000] tsc: Detected 431.192 MHz processor
|
|
|
+[ 0.000058] e820: update [mem 0x00000000-0x00000fff] usable ==> reserved
|
|
|
+[ 0.000097] e820: remove [mem 0x000a0000-0x000fffff] usable
|
|
|
+[ 0.000134] last_pfn = 0xec00 max_arch_pfn = 0x100000
|
|
|
+[ 0.000151] x86/PAT: PAT support disabled because CONFIG_X86_PAT is disabled in the kernel.
|
|
|
+[ 0.000164] x86/PAT: Configuration [0-7]: WB WT UC- UC WB WT UC- UC
|
|
|
+[ 0.000267] initial memory mapped: [mem 0x00000000-0x01ffffff]
|
|
|
+[ 0.000568] ACPI: Early table checksum verification disabled
|
|
|
+[ 0.001763] ACPI BIOS Error (bug): A valid RSDP was not found (20250807/tbxfroot-222)
|
|
|
+[ 0.001798] ACPI: Failed to initialize tables, status=0x5 (AE_NOT_FOUND)
|
|
|
+[ 0.001883] 236MB LOWMEM available.
|
|
|
+[ 0.001897] mapped low ram: 0 - 0ec00000
|
|
|
+[ 0.001909] low ram: 0 - 0ec00000
|
|
|
+[ 0.100745] PROM DT: Built device tree with 65536 bytes of memory.
|
|
|
+[ 0.100761] Zone ranges:
|
|
|
+[ 0.100769] DMA [mem 0x0000000000001000-0x0000000000ffffff]
|
|
|
+[ 0.100794] Normal [mem 0x0000000001000000-0x000000000ebfffff]
|
|
|
+[ 0.100818] Movable zone start for each node
|
|
|
+[ 0.100826] Early memory node ranges
|
|
|
+[ 0.100834] node 0: [mem 0x0000000000001000-0x000000000009efff]
|
|
|
+[ 0.100854] node 0: [mem 0x0000000000100000-0x000000000ebfffff]
|
|
|
+[ 0.100876] Initmem setup node 0 [mem 0x0000000000001000-0x000000000ebfffff]
|
|
|
+[ 0.100945] On node 0, zone DMA: 1 pages in unavailable ranges
|
|
|
+[ 0.101608] On node 0, zone DMA: 97 pages in unavailable ranges
|
|
|
+[ 0.110732] [mem 0x0ec00000-0xffffffff] available for PCI devices
|
|
|
+[ 0.110884] clocksource: refined-jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
|
|
|
+[ 0.111056] pcpu-alloc: s0 r0 d32768 u32768 alloc=1*32768
|
|
|
+[ 0.111088] pcpu-alloc: [0] 0
|
|
|
+[ 0.111164] Kernel command line: console=ttyS0,115200 console=tty0 fbcon=font:SUN12x22 no_console_suspend selinux=0 console=tty0 ro rootwait rw root=/dev/mmcblk0p1 loglevel=9 fbcon=font:SUN12x22 console=tty0 net.ifnames=0 iommu=off
|
|
|
+[ 0.112749] Unknown kernel command line parameters "selinux=0", will be passed to user space.
|
|
|
+[ 0.112825] printk: log buffer data + meta data: 131072 + 409600 = 540672 bytes
|
|
|
+[ 0.113181] Dentry cache hash table entries: 32768 (order: 5, 131072 bytes, linear)
|
|
|
+[ 0.113371] Inode-cache hash table entries: 16384 (order: 4, 65536 bytes, linear)
|
|
|
+[ 0.113438] Built 1 zonelists, mobility grouping on. Total pages: 60318
|
|
|
+[ 0.113458] mem auto-init: stack:off, heap alloc:off, heap free:off
|
|
|
+[ 0.124902] Checking if this processor honours the WP bit even in supervisor mode...Ok.
|
|
|
+[ 0.125385] SLUB: HWalign=32, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
|
|
|
+[ 0.126496] RCU Tasks Trace: Setting shift to 0 and lim to 1 rcu_task_cb_adjust=1 rcu_task_cpu_ids=1.
|
|
|
+[ 0.168355] NR_IRQS: 16, nr_irqs: 16, preallocated irqs: 16
|
|
|
+[ 0.169565] Console: colour EGA 80x25
|
|
|
+[ 0.169594] printk: legacy console [tty0] enabled
|
|
|
+[ 0.173672] printk: legacy console [ttyS0] enabled
|
|
|
+[ 0.539731] clocksource: tsc-early: mask: 0xffffffffffffffff max_cycles: 0x637232978b, max_idle_ns: 440795211758 ns
|
|
|
+[ 0.550301] Calibrating delay loop (skipped), value calculated using timer frequency.. 862.38 BogoMIPS (lpj=4311920)
|
|
|
+[ 0.560365] Last level iTLB entries: 4KB 0, 2MB 0, 4MB 0
|
|
|
+[ 0.565766] Last level dTLB entries: 4KB 0, 2MB 0, 4MB 0, 1GB 0
|
|
|
+[ 0.570315] CPU: Geode(TM) Integrated Processor by AMD PCS (family: 0x5, model: 0xa, stepping: 0x2)
|
|
|
+[ 0.580310] mitigations: Enabled attack vectors: SMT mitigations: off
|
|
|
+[ 0.586852] Speculative Store Bypass: Vulnerable
|
|
|
+[ 0.590312] Spectre V2 : Vulnerable
|
|
|
+[ 0.593879] Spectre V1 : Vulnerable: __user pointer sanitization and usercopy barriers only; no swapgs barriers
|
|
|
+[ 0.600323] x86/fpu: x87 FPU will use FSAVE
|
|
|
+[ 0.615134] pid_max: default: 32768 minimum: 301
|
|
|
+[ 0.620549] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
|
|
|
+[ 0.627973] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
|
|
|
+[ 0.633069] Performance Events: no PMU driver, software events only.
|
|
|
+[ 0.640521] signal: max sigframe size: 928
|
|
|
+[ 0.650844] Memory: 224648K/241272K available (7266K kernel code, 1361K rwdata, 3124K rodata, 516K init, 284K bss, 15516K reserved, 0K cma-reserved)
|
|
|
+[ 0.660981] devtmpfs: initialized
|
|
|
+[ 0.678791] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
|
|
|
+[ 0.680372] posixtimers hash table entries: 512 (order: 0, 2048 bytes, linear)
|
|
|
+[ 0.690331] futex hash table entries: 256 (4096 bytes on 1 NUMA nodes, total 4 KiB, linear).
|
|
|
+[ 0.702832] NET: Registered PF_NETLINK/PF_ROUTE protocol family
|
|
|
+[ 0.711447] OLPC board revision C2
|
|
|
+[ 0.716865] thermal_sys: Registered thermal governor 'step_wise'
|
|
|
+[ 0.716922] cpuidle: using governor menu
|
|
|
+[ 0.731229] clocksource: pit: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 1601818034827 ns
|
|
|
+[ 0.740564] olpc-xo1-rtc: Initializing OLPC XO-1 RTC
|
|
|
+[ 0.748144] PCI: Using configuration type OLPC XO-1
|
|
|
+[ 0.761744] ACPI: Interpreter disabled.
|
|
|
+[ 0.765824] iommu: Default domain type: Translated
|
|
|
+[ 0.770324] iommu: DMA domain TLB invalidation policy: lazy mode
|
|
|
+[ 0.777036] SCSI subsystem initialized
|
|
|
+[ 0.780849] usbcore: registered new interface driver usbfs
|
|
|
+[ 0.786526] usbcore: registered new interface driver hub
|
|
|
+[ 0.790392] usbcore: registered new device driver usb
|
|
|
+[ 0.837551] Advanced Linux Sound Architecture Driver Initialized.
|
|
|
+[ 0.843090] PCI: Probing PCI hardware
|
|
|
+[ 0.850314] PCI: root bus 00: using default resources
|
|
|
+[ 0.855452] PCI: Probing PCI hardware (bus 00)
|
|
|
+[ 0.860608] PCI host bridge to bus 0000:00
|
|
|
+[ 0.864803] pci_bus 0000:00: root bus resource [io 0x0000-0xffff]
|
|
|
+[ 0.870321] pci_bus 0000:00: root bus resource [mem 0x00000000-0xffffffff]
|
|
|
+[ 0.877300] pci_bus 0000:00: No busn resource found for root bus, will use [bus 00-ff]
|
|
|
+[ 0.880387] pci 0000:00:01.0: [1022:0028] type 00 class 0x060000 conventional PCI endpoint
|
|
|
+[ 0.890814] pci 0000:00:01.1: [1022:2081] type 00 class 0x030000 conventional PCI endpoint
|
|
|
+[ 0.900343] pci 0000:00:01.1: BAR 0 [mem 0xfd000000-0xfdffffff]
|
|
|
+[ 0.906371] pci 0000:00:01.1: BAR 1 [mem 0xfe000000-0xfe003fff]
|
|
|
+[ 0.910320] pci 0000:00:01.1: BAR 2 [mem 0xfe004000-0xfe007fff]
|
|
|
+[ 0.920320] pci 0000:00:01.1: BAR 3 [mem 0xfe008000-0xfe00bfff]
|
|
|
+[ 0.926339] pci 0000:00:01.1: BAR 4 [mem 0xfe00c000-0xfe00ffff]
|
|
|
+[ 0.930343] pci 0000:00:01.1: Video device with shadowed ROM at [mem 0x000c0000-0x000dffff]
|
|
|
+[ 0.940745] pci 0000:00:01.2: [1022:2082] type 00 class 0x101000 conventional PCI endpoint
|
|
|
+[ 0.950342] pci 0000:00:01.2: BAR 0 [mem 0xfe010000-0xfe013fff]
|
|
|
+[ 0.956834] pci 0000:00:0c.0: [11ab:4100] type 00 class 0x050101 conventional PCI endpoint
|
|
|
+[ 0.960365] pci 0000:00:0c.0: BAR 0 [mem 0xfe020000-0xfe023fff]
|
|
|
+[ 0.970807] pci 0000:00:0c.1: [11ab:4101] type 00 class 0x080501 conventional PCI endpoint
|
|
|
+[ 0.980366] pci 0000:00:0c.1: BAR 0 [mem 0xfe024000-0xfe027fff]
|
|
|
+[ 0.986452] pci 0000:00:0c.1: supports D1
|
|
|
+[ 0.990319] pci 0000:00:0c.1: PME# supported from D0 D3hot
|
|
|
+[ 0.996397] pci 0000:00:0c.2: [11ab:4102] type 00 class 0x040001 conventional PCI endpoint
|
|
|
+[ 1.000365] pci 0000:00:0c.2: BAR 0 [mem 0xfe028000-0xfe02bfff]
|
|
|
+[ 1.010808] pci 0000:00:0f.0: [1022:2090] type 00 class 0x060100 conventional PCI endpoint
|
|
|
+[ 1.020341] pci 0000:00:0f.0: BAR 0 [io 0x18b0-0x18b7]
|
|
|
+[ 1.025667] pci 0000:00:0f.0: BAR 1 [io 0x1000-0x10ff]
|
|
|
+[ 1.030320] pci 0000:00:0f.0: BAR 2 [io 0x1800-0x183f]
|
|
|
+[ 1.035645] pci 0000:00:0f.0: BAR 3 [io 0x1880-0x189f]
|
|
|
+[ 1.040320] pci 0000:00:0f.0: BAR 4 [io 0x1400-0x147f]
|
|
|
+[ 1.045646] pci 0000:00:0f.0: BAR 5 [io 0x1840-0x187f]
|
|
|
+[ 1.050809] pci 0000:00:0f.3: [1022:2093] type 00 class 0x040100 conventional PCI endpoint
|
|
|
+[ 1.060343] pci 0000:00:0f.3: BAR 0 [io 0x1480-0x14ff]
|
|
|
+[ 1.066210] pci 0000:00:0f.4: [1022:2094] type 00 class 0x0c0310 conventional PCI endpoint
|
|
|
+[ 1.070342] pci 0000:00:0f.4: BAR 0 [mem 0xfe01a000-0xfe01afff]
|
|
|
+[ 1.080355] pci 0000:00:0f.4: PME# supported from D0 D3hot D3cold
|
|
|
+[ 1.087031] pci 0000:00:0f.5: [1022:2095] type 00 class 0x0c0320 conventional PCI endpoint
|
|
|
+[ 1.090342] pci 0000:00:0f.5: BAR 0 [mem 0xfe01b000-0xfe01bfff]
|
|
|
+[ 1.100355] pci 0000:00:0f.5: PME# supported from D0 D3hot D3cold
|
|
|
+[ 1.107034] pci_bus 0000:00: busn_res: [bus 00-ff] end is updated to 00
|
|
|
+[ 1.111871] PCI: pci_cache_line_size set to 32 bytes
|
|
|
+[ 1.120370] e820: reserve RAM buffer [mem 0x0009f000-0x0009ffff]
|
|
|
+[ 1.126472] e820: reserve RAM buffer [mem 0x0ec00000-0x0fffffff]
|
|
|
+[ 1.424916] pci 0000:00:01.1: vgaarb: setting as boot VGA device
|
|
|
+[ 1.430299] pci 0000:00:01.1: vgaarb: bridge control possible
|
|
|
+[ 1.430299] pci 0000:00:01.1: vgaarb: VGA device added: decodes=io+mem,owns=io+mem,locks=none
|
|
|
+[ 1.430330] vgaarb: loaded
|
|
|
+[ 1.434310] clocksource: Switched to clocksource tsc-early
|
|
|
+[ 1.439909] pnp: PnP ACPI: disabled
|
|
|
+[ 1.496772] NET: Registered PF_INET protocol family
|
|
|
+[ 1.502226] IP idents hash table entries: 4096 (order: 3, 32768 bytes, linear)
|
|
|
+[ 1.512379] tcp_listen_portaddr_hash hash table entries: 1024 (order: 0, 4096 bytes, linear)
|
|
|
+[ 1.520967] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
|
|
|
+[ 1.528868] TCP established hash table entries: 2048 (order: 1, 8192 bytes, linear)
|
|
|
+[ 1.536716] TCP bind hash table entries: 2048 (order: 2, 16384 bytes, linear)
|
|
|
+[ 1.544041] TCP: Hash tables configured (established 2048 bind 2048)
|
|
|
+[ 1.550582] UDP hash table entries: 256 (order: 1, 8192 bytes, linear)
|
|
|
+[ 1.557304] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes, linear)
|
|
|
+[ 1.564665] NET: Registered PF_UNIX/PF_LOCAL protocol family
|
|
|
+[ 1.652039] pci_bus 0000:00: resource 4 [io 0x0000-0xffff]
|
|
|
+[ 1.657746] pci_bus 0000:00: resource 5 [mem 0x00000000-0xffffffff]
|
|
|
+[ 1.680385] pci 0000:00:0f.4: quirk_usb_early_handoff+0x0/0x5b8 took 15716 usecs
|
|
|
+[ 1.688006] PCI: CLS 32 bytes, default 32
|
|
|
+[ 1.707464] Initialise system trusted keyrings
|
|
|
+[ 1.712436] workingset: timestamp_bits=30 max_order=16 bucket_order=0
|
|
|
+[ 1.719600] squashfs: version 4.0 (2009/01/31) Phillip Lougher
|
|
|
+[ 1.739254] Key type cifs.idmap registered
|
|
|
+[ 1.743515] jffs2: version 2.2. (NAND) (SUMMARY) © 2001-2006 Red Hat, Inc.
|
|
|
+[ 1.767550] fuse: init (API version 7.45)
|
|
|
+[ 2.342118] Key type asymmetric registered
|
|
|
+[ 2.346318] Asymmetric key parser 'x509' registered
|
|
|
+[ 2.351385] io scheduler mq-deadline registered
|
|
|
+[ 2.356006] io scheduler kyber registered
|
|
|
+[ 2.360480] lxfb 0000:00:01.1: vgaarb: deactivate vga console
|
|
|
+[ 2.366887] Console: switching to colour dummy device 80x25
|
|
|
+[ 2.394809] lxfb 0000:00:01.1: 16384 KB of video memory at 0xfd000000
|
|
|
+[ 2.469450] Console: switching to colour frame buffer device 100x40
|
|
|
+[ 2.499257] fb0: Geode LX frame buffer device
|
|
|
+[ 2.504407] usbcore: registered new interface driver udlfb
|
|
|
+[ 2.511737] Serial: 8250/16550 driver, 4 ports, IRQ sharing disabled
|
|
|
+[ 2.519394] serial8250: ttyS0 at I/O 0x3f8 (irq = 4, base_baud = 115200) is a 16550A
|
|
|
+[ 2.531868] Non-volatile memory driver v1.3
|
|
|
+[ 2.536474] AMD Geode RNG detected
|
|
|
+[ 2.541567] random: crng init done
|
|
|
+[ 2.564540] brd: module loaded
|
|
|
+[ 2.578625] loop: module loaded
|
|
|
+[ 2.582595] cs5535-gpio cs5535-gpio: reserved resource region [io 0x1000-0x10ff]
|
|
|
+[ 2.590725] gpio gpiochip0: Static allocation of GPIO base is deprecated, use dynamic allocation.
|
|
|
+[ 2.606526] OLPC XO-1 support registered
|
|
|
+[ 2.617399] input: Power Button as /devices/pci0000:00/0000:00:0f.0/olpc-xo1-sci-acpi/input/input0
|
|
|
+[ 2.640792] input: EBook Switch as /devices/pci0000:00/0000:00:0f.0/olpc-xo1-sci-acpi/input/input1
|
|
|
+[ 2.666529] input: Lid Switch as /devices/pci0000:00/0000:00:0f.0/olpc-xo1-sci-acpi/input/input2
|
|
|
+[ 2.701674] olpc-xo1-sci-acpi olpc-xo1-sci-acpi: SCI is mapped to IRQ 3
|
|
|
+[ 2.722290] cs5535-mfd 0000:00:0f.0: 4 devices registered.
|
|
|
+[ 2.740200] usbcore: registered new interface driver carl9170
|
|
|
+[ 2.756582] usbcore: registered new interface driver usb8xxx
|
|
|
+[ 2.772910] usbcore: registered new interface driver rt2800usb
|
|
|
+[ 2.789401] usbcore: registered new device driver r8152-cfgselector
|
|
|
+[ 2.806670] usbcore: registered new interface driver r8152
|
|
|
+[ 2.823338] usbcore: registered new interface driver asix
|
|
|
+[ 2.839959] usbcore: registered new interface driver ax88179_178a
|
|
|
+[ 2.857639] clocksource: tsc: mask: 0xffffffffffffffff max_cycles: 0x637232978b, max_idle_ns: 440795211758 ns
|
|
|
+[ 2.891555] clocksource: Switched to clocksource tsc
|
|
|
+[ 2.909272] ehci-pci 0000:00:0f.5: EHCI Host Controller
|
|
|
+[ 2.927495] ehci-pci 0000:00:0f.5: new USB bus registered, assigned bus number 1
|
|
|
+[ 2.948481] ehci-pci 0000:00:0f.5: irq 10, io mem 0xfe01b000
|
|
|
+[ 2.981302] ehci-pci 0000:00:0f.5: USB 2.0 started, EHCI 1.00
|
|
|
+[ 3.000924] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.18
|
|
|
+[ 3.022918] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
|
|
|
+[ 3.043752] usb usb1: Product: EHCI Host Controller
|
|
|
+[ 3.062083] usb usb1: Manufacturer: Linux 6.18.8-1 ehci_hcd
|
|
|
+[ 3.081086] usb usb1: SerialNumber: 0000:00:0f.5
|
|
|
+[ 3.100238] hub 1-0:1.0: USB hub found
|
|
|
+[ 3.117125] hub 1-0:1.0: 4 ports detected
|
|
|
+[ 3.135666] ohci-pci 0000:00:0f.4: OHCI PCI host controller
|
|
|
+[ 3.154250] ohci-pci 0000:00:0f.4: new USB bus registered, assigned bus number 2
|
|
|
+[ 3.175013] ohci-pci 0000:00:0f.4: irq 10, io mem 0xfe01a000
|
|
|
+[ 3.283709] usb usb2: New USB device found, idVendor=1d6b, idProduct=0001, bcdDevice= 6.18
|
|
|
+[ 3.305761] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1
|
|
|
+[ 3.326606] usb usb2: Product: OHCI PCI host controller
|
|
|
+[ 3.345119] usb usb2: Manufacturer: Linux 6.18.8-1 ohci_hcd
|
|
|
+[ 3.363727] usb usb2: SerialNumber: 0000:00:0f.4
|
|
|
+[ 3.382617] hub 2-0:1.0: USB hub found
|
|
|
+[ 3.398761] hub 2-0:1.0: 4 ports detected
|
|
|
+[ 3.416747] usbcore: registered new interface driver usb-storage
|
|
|
+[ 3.434802] usbcore: registered new interface driver ftdi_sio
|
|
|
+[ 3.451889] usbserial: USB Serial support registered for FTDI USB Serial Device
|
|
|
+[ 3.470970] i8042: PNP: No PS/2 controller found.
|
|
|
+[ 3.486758] i8042: Probing ports directly.
|
|
|
+[ 3.512534] serio: i8042 KBD port at 0x60,0x64 irq 1
|
|
|
+[ 3.528720] serio: i8042 AUX port at 0x60,0x64 irq 12
|
|
|
+[ 3.548361] rtc_cmos rtc_cmos: registered as rtc0
|
|
|
+[ 3.564458] rtc_cmos rtc_cmos: setting system clock to 1999-12-06T02:13:24 UTC (944446404)
|
|
|
+[ 3.584562] rtc_cmos rtc_cmos: alarms up to one year, y3k, 114 bytes nvram
|
|
|
+[ 3.603412] i2c_dev: i2c /dev entries driver
|
|
|
+[ 3.619997] usb 1-1: new high-speed USB device number 2 using ehci-pci
|
|
|
+[ 3.639472] cs5535-smb cs5535-smb: SCx200 device 'CS5535 ACB0' registered
|
|
|
+[ 3.664688] sdhci: Secure Digital Host Controller Interface driver
|
|
|
+[ 3.682775] sdhci: Copyright(c) Pierre Ossman
|
|
|
+[ 3.699320] sdhci-pci 0000:00:0c.1: SDHCI controller found [11ab:4101] (rev 10)
|
|
|
+[ 3.719592] sdhci-pci 0000:00:0c.1: incomplete constraints, dummy supplies not allowed (id=vmmc)
|
|
|
+[ 3.740622] sdhci-pci 0000:00:0c.1: incomplete constraints, dummy supplies not allowed (id=vqmmc)
|
|
|
+[ 3.761596] sdhci-pci 0000:00:0c.1: incomplete constraints, dummy supplies not allowed (id=vqmmc2)
|
|
|
+[ 3.793303] mmc0 bounce up to 128 segments into one, max segment size 65536 bytes
|
|
|
+[ 3.813093] Geode LX AES 0000:00:01.2: GEODE AES engine enabled.
|
|
|
+[ 3.833029] input: AT Translated Set 2 keyboard as /devices/platform/i8042/serio0/input/input3
|
|
|
+[ 3.864449] snd_cs5535audio 0000:00:0f.3: Failure reading codec reg 0x7e, Last value=0x7e805368
|
|
|
+[ 3.886157] snd_cs5535audio 0000:00:0f.3: Failure reading codec reg 0x7e, Last value=0x7e805368
|
|
|
+[ 3.932130] usb 1-1: New USB device found, idVendor=1286, idProduct=2001, bcdDevice=31.07
|
|
|
+[ 3.953276] usb 1-1: New USB device strings: Mfr=1, Product=2, SerialNumber=0
|
|
|
+[ 3.973186] usb 1-1: Product: MARVELL Wireless Device
|
|
|
+[ 3.990836] usb 1-1: Manufacturer: Marvell
|
|
|
+[ 4.030964] usbcore: registered new interface driver snd-usb-audio
|
|
|
+[ 4.050387] NET: Registered PF_INET6 protocol family
|
|
|
+[ 4.090641] mmc0: SDHCI controller on PCI [0000:00:0c.1] using DMA
|
|
|
+[ 4.128618] Segment Routing with IPv6
|
|
|
+[ 4.144951] In-situ OAM (IOAM) with IPv6
|
|
|
+[ 4.161491] sit: IPv6, IPv4 and MPLS over IPv4 tunneling driver
|
|
|
+[ 4.181500] NET: Registered PF_PACKET protocol family
|
|
|
+[ 4.199301] Key type dns_resolver registered
|
|
|
+[ 4.217451] microcode: AMD CPU family 0x5 not supported
|
|
|
+[ 4.254322] sched_clock: Marking stable (3890023556, 361214496)->(4269922395, -18684343)
|
|
|
+[ 4.308684] usb 1-1: Direct firmware load for libertas/usb8388_olpc.bin failed with error -2
|
|
|
+[ 4.331559] Loading compiled-in X.509 certificates
|
|
|
+[ 4.373863] usb 1-1: Direct firmware load for libertas/usb8388_v9.bin failed with error -2
|
|
|
+[ 4.397418] usb 1-1: Direct firmware load for libertas/usb8388_v5.bin failed with error -2
|
|
|
+[ 4.420055] cfg80211: Loading compiled-in X.509 certificates for regulatory database
|
|
|
+[ 4.442798] usb 1-1: Direct firmware load for libertas/usb8388.bin failed with error -2
|
|
|
+[ 4.485700] Loaded X.509 cert 'sforshee: 00b28ddf47aef9cea7'
|
|
|
+[ 4.524865] Loaded X.509 cert 'wens: 61c038651aabdcf94bd0ac7ff06c7248db18c600'
|
|
|
+[ 4.546190] clk: Disabling unused clocks
|
|
|
+[ 4.563930] ALSA device list:
|
|
|
+[ 4.580392] #0: CS5535 Audio cs5535audio at 0x1480, irq 5
|
|
|
+[ 4.599933] faux_driver regulatory: Direct firmware load for regulatory.db failed with error -2
|
|
|
+[ 4.622731] cfg80211: failed to load regulatory.db
|
|
|
+[ 4.642205] check access for rdinit=/init failed: -2, ignoring
|
|
|
+[ 4.732549] mmc0: new high speed SDHC card at address aaaa
|
|
|
+[ 4.755245] mmcblk0: mmc0:aaaa SR32G 29.7 GiB
|
|
|
+[ 4.779471] mmcblk0: p1 p4
|
|
|
+[ 4.856685] psmouse serio1: hgpk: ID: 67 00 50
|
|
|
+[ 4.875052] psmouse serio1: hgpk: OLPC touchpad revision 0x50
|
|
|
+[ 4.918177] input: OLPC HGPK ALPS HGPK as /devices/platform/i8042/serio1/input/input5
|
|
|
+[ 5.408448] EXT4-fs (mmcblk0p1): mounted filesystem 8bf49366-2efd-4f78-85da-cc08c10b462d r/w with ordered data mode. Quota mode: disabled.
|
|
|
+[ 5.449058] VFS: Mounted root (ext4 filesystem) on device 179:1.
|
|
|
+[ 5.470879] devtmpfs: mounted
|
|
|
+[ 5.489416] Freeing unused kernel image (initmem) memory: 516K
|
|
|
+[ 5.510135] Write protecting kernel text and read-only data: 10392k
|
|
|
+[ 5.530602] rodata_test: all tests were successful
|
|
|
+[ 5.549553] Run /sbin/init as init process
|
|
|
+[ 5.567591] with arguments:
|
|
|
+[ 5.584256] /sbin/init
|
|
|
+[ 5.600577] with environment:
|
|
|
+[ 5.617175] HOME=/
|
|
|
+[ 5.632768] TERM=linux
|
|
|
+[ 5.648525] selinux=0
|
|
|
+[ 5.985293] udevd[71]: starting version 3.2.14
|
|
|
+[ 6.039359] udevd[72]: starting eudev-3.2.14
|
|
|
+[ 6.656830] udevd[74]: Unknown key identifier 'btn_dpad_up'
|
|
|
+[ 6.656915] udevd[74]: Unknown key identifier 'btn_dpad_down'
|
|
|
+[ 6.656980] udevd[74]: Unknown key identifier 'btn_dpad_left'
|
|
|
+[ 6.657043] udevd[74]: Unknown key identifier 'btn_dpad_right'
|
|
|
+[ 6.657472] udevd[74]: Unknown key identifier 'btn_north'
|
|
|
+[ 6.657534] udevd[74]: Unknown key identifier 'btn_south'
|
|
|
+[ 6.657595] udevd[74]: Unknown key identifier 'btn_west'
|
|
|
+[ 6.657656] udevd[74]: Unknown key identifier 'btn_east'
|
|
|
+[ 9.471945] EXT4-fs (mmcblk0p1): re-mounted 8bf49366-2efd-4f78-85da-cc08c10b462d ro.
|
|
|
+[ 9.921105] NET: Registered PF_KEY protocol family
|
|
|
+[ 9.956783] Initializing XFRM netlink socket
|
|
|
+[ 10.214997] usb8xxx 1-1:1.0 (unnamed net_device) (uninitialized): 00:17:c4:14:70:35, fw 5.43.7p0, cap 0x000003a3
|
|
|
+[ 10.216590] usb8xxx 1-1:1.0 (unnamed net_device) (uninitialized): PREP_CMD: command 0x00a3 failed: 2
|
|
|
+[ 10.216963] usb8xxx 1-1:1.0 (unnamed net_device) (uninitialized): PREP_CMD: command 0x10ac failed: 2
|
|
|
+[ 10.217338] usb8xxx 1-1:1.0 (unnamed net_device) (uninitialized): PREP_CMD: command 0x00a3 failed: 2
|
|
|
+[ 10.219621] usb8xxx 1-1:1.0 wlan0: Marvell WLAN 802.11 adapter
|
|
|
+[ 10.231453] usb8xxx 1-1:1.0 wlan0: PREP_CMD: command 0x00a5 failed: 2
|
|
|
+[ 10.232365] usb8xxx 1-1:1.0 wlan0: Firmware doesn't wake via command interrupt; disabling PS mode
|
|
|
+[ 12.270331] ieee80211 phy0: assoc: bss (null) not in scan results
|
|
|
+[ 31.174260] EXT4-fs (mmcblk0p1): re-mounted 8bf49366-2efd-4f78-85da-cc08c10b462d r/w.
|
|
|
+```
|
|
|
+
|
|
|
+Have fun!
|
Waldemar Brodkorb
